PaddleScience Introduction

PaddleScience comprises 12 modules structured by code functionality. From a general deep learning workflow perspective, these modules handle input data construction, neural network model architecture, loss function definition, optimizer configuration, training, evaluation, and visualization. In the context of scientific computing, certain modules serve distinct functions compared to traditional CV and NLP tasks. For instance, the Equation module, designed for physics-driven tasks, defines governing equations and facilitates higher-order differential calculations; the Geometry module handles geometric scene sampling, defining both simple and complex shapes to sample interior and boundary data; and the Constraint module unifies different optimization objectives as "constraints." This design allows the suite to standardize three distinct solving paradigms—physics-driven, data-driven, and physics-data fusion—within a single training framework.

1. Overall Workflow

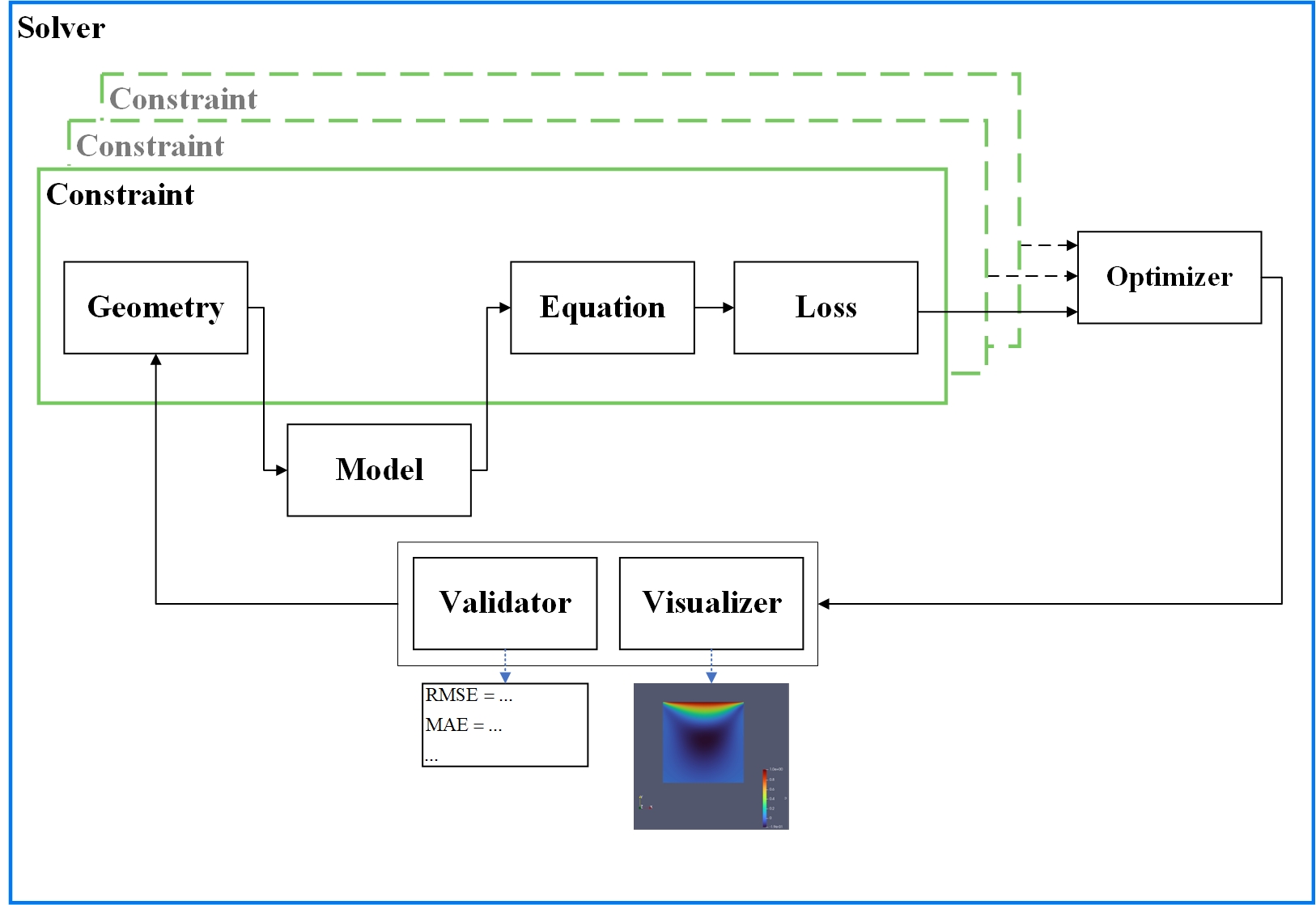

The figure above illustrates the PaddleScience workflow (using a geometry-based problem as an example). The process is described as follows:

1. Geometry constructs the geometric domain and performs sampling to generate input data.
2. The Model module accepts inputs and computes model outputs.
3. Scientific computing tasks often require further processing. Model outputs are typically not the final result; additional calculations of variables required by the governing equations are performed via the Equation module.
4. The loss function is computed, and the framework's automatic differentiation mechanism calculates gradients for all parameters.
5. Optimization objectives can apply to different geometric regions (e.g., interior and boundary areas), resulting in multiple Constraints as shown in the figure.
6. Gradients from all Constraints are accumulated to update model parameters.
7. If evaluation and visualization are enabled, the model is automatically evaluated, and prediction results are visualized at specified intervals.
8. Solver acts as the global scheduler, managing the entire suite's operation and repeating the process according to user-defined epochs and frequencies.

2. Module Introduction

2.1 Arch

The Arch module handles network model assembly, parameter initialization, and forward calculation. It includes multiple built-in models for immediate use.

2.2 AutoDiff

The AutoDiff module calculates higher-order differentials. It provides built-in global singletons, jacobian and hessian, based on PaddlePaddle's automatic differentiation mechanism.

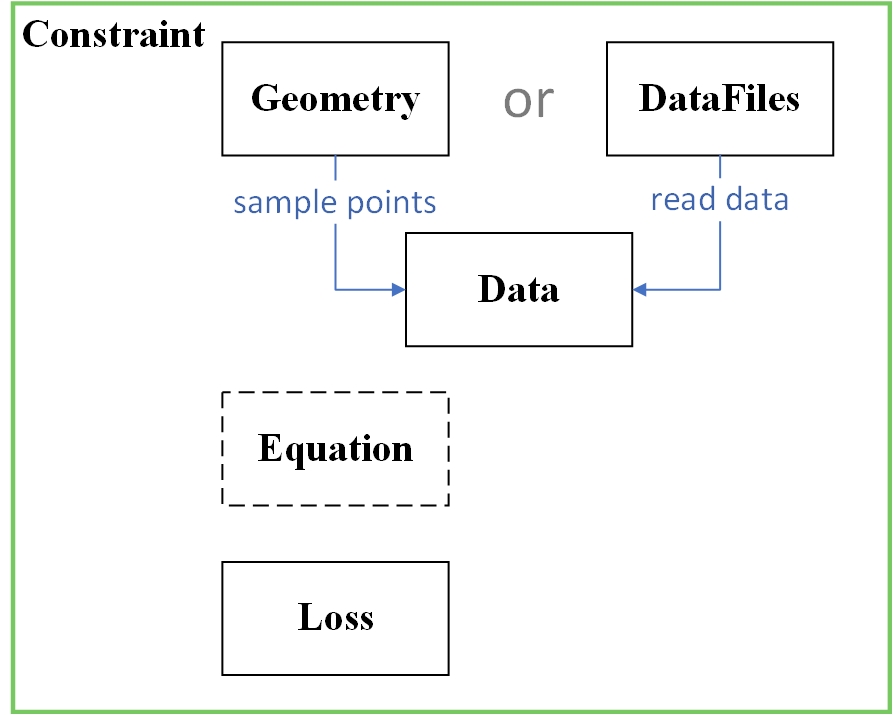

2.3 Constraint

To unify the three solving paradigms—physics-driven, data-driven, and physics-data fusion—the Constraint module encapsulates necessary interfaces for data construction, the input-to-output calculation process, and loss functions. Using these interfaces, Constraint can represent various training objectives, such as:

• InteriorConstraint: Applies loss functions within a specified geometric interior to optimize model parameters, ensuring outputs satisfy given conditions.
• BoundaryConstraint: Applies loss functions on geometric boundaries to optimize model parameters, ensuring outputs satisfy boundary conditions.
• SupervisedConstraint: Applies loss functions to labeled data (analogous to supervised training in CV and NLP) to optimize model parameters.
• ...

This module serves two main functions: 1. Unification: It standardizes the code flow for both physics-driven (often unsupervised) and data-driven (supervised) optimization paradigms. 2. Fusion: It facilitates physics-data fusion by allowing users to construct distinct Constraints and train them jointly.

2.4 Data

The Data module handles data reading, encapsulation, and preprocessing, as detailed below.

Submodule Name	Submodule Function
ppsci.data.dataset	Dataset related
ppsci.data.transform	Single data sample preprocessing related methods
ppsci.data.batch_transform	Batch data preprocessing related methods

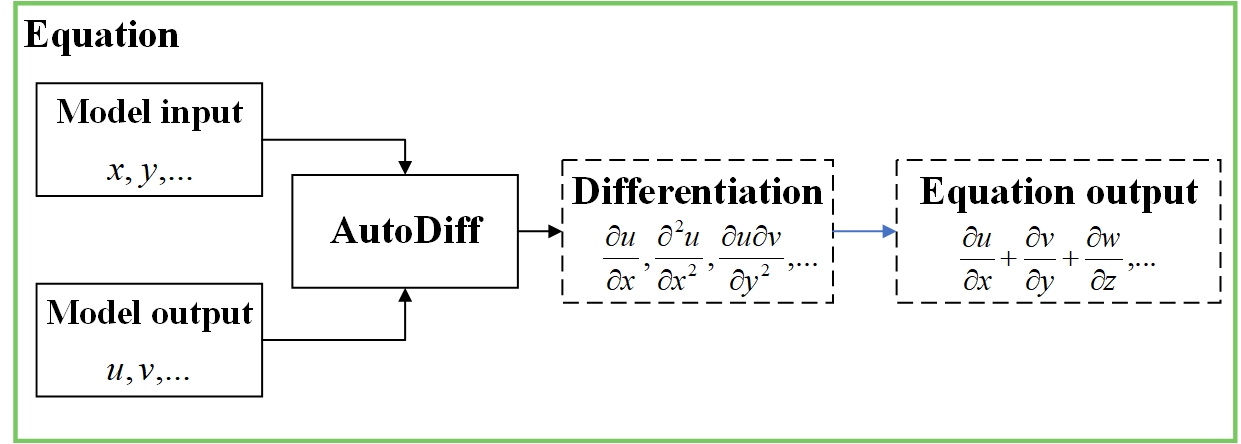

2.5 Equation

The Equation module defines calculation functions for common governing equations, such as NavierStokes for N-S equations and Vibration for vibration equations. Each equation class encapsulates the logic for computing related variables.

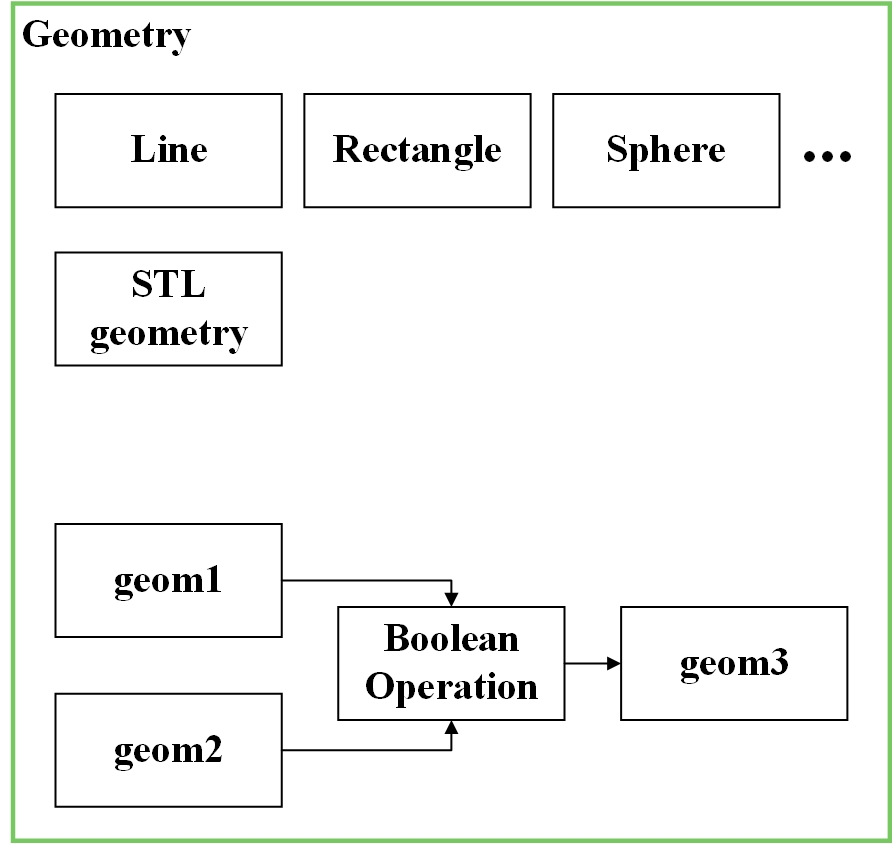

2.6 Geometry

The Geometry module defines common geometric shapes, including Interval (line segment), Rectangle, and Sphere.

2.7 Loss

The Loss module includes two submodules: ppsci.loss.loss and ppsci.loss.mtl, as shown below.

Submodule Name	Submodule Function
ppsci.loss.loss	Loss function related
ppsci.loss.mtl	Multi-objective optimization related

2.8 Optimizer

The Optimizer module includes two submodules: ppsci.optimizer.optimizer and ppsci.optimizer.lr_scheduler, as shown below.

Submodule Name	Submodule Function
ppsci.utils.optimizer	Optimizer related
ppsci.utils.lr_scheduler	Learning rate scheduler related

2.9 Solver

The Solver module defines the solver, acting as the startup and management engine for training, evaluation, inference, and visualization.

2.10 Utils

The Utils module contains utility classes and functions applicable to various scenarios, such as data reading in reader.py, logging in logger.py, and equation calculations in expression.py.

It is subdivided into the following 8 submodules based on functionality:

Submodule Name	Submodule Function
ppsci.utils.checker	ppsci installation function check related
ppsci.utils.expression	Responsible for forward calculation of models and equations involved in training, evaluation, and visualization
ppsci.utils.initializer	Common parameter initialization methods
ppsci.utils.logger	Log printing module
ppsci.utils.misc	Store general functions
ppsci.utils.reader	File reading module
ppsci.utils.writer	File writing module
ppsci.utils.save_load	Model parameter saving and loading
ppsci.utils.symbolic	sympy symbolic calculation function related

2.11 Validate

The Validator module defines various validators for evaluating the model on specified data (optional; evaluation is not enabled by default during training) and computing evaluation metrics.

2.12 Visualize

The Visualizer module defines visualizers for generating predictions on specified data after model evaluation (optional; visualization is not enabled by default during training) and saving the results as visualization files.
